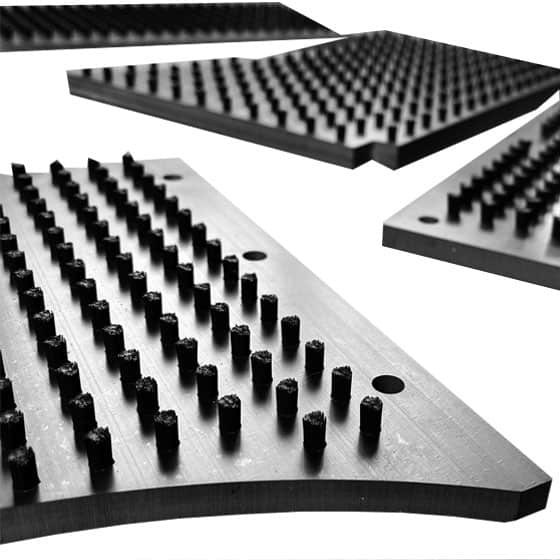

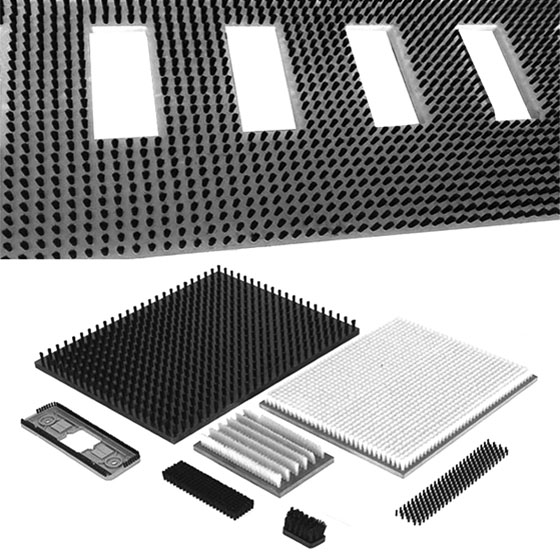

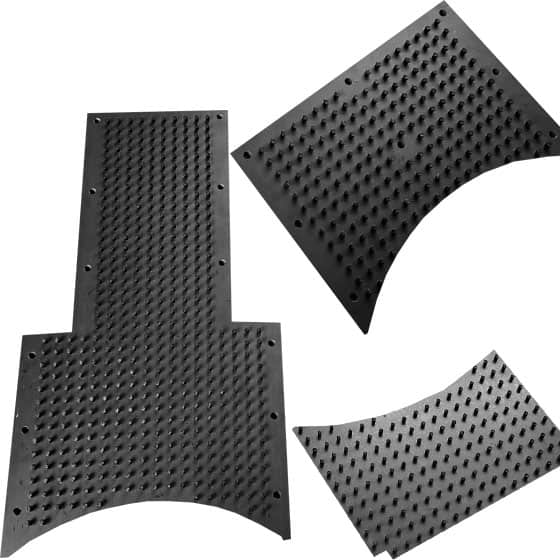

PVC Panel Board Brushes - Special Types

Description:

Panel brushes, special plate brushes or transport brushes are mainly used in CNC punching press operation to provide supporting and conveying for products and can reliably prevent damage to surfaces. Normally there are 3 options for base board material, PVC, PP or PE, Large brush panel work areas to support sheet metal can be created – with contour forms or cut out areas if required. They can be equipped with almost all fill materials, such as synthetic bristles, animal Hair, plant fibers, wire. With your desired or our recommended trim height and fill configuration. By carrying and gliding on thousands of individual flexible bristle tips, sensitive surfaces such as sheet metal, furniture parts or glass are treated with absolute care. These specialized brushes ensure gentle handling and safe transport of your products.

Features:

- No MOQ limit

- Free sample provided

- Customization available

- Angling the bristles available

- Bristle length can be as required

- Material for base board: PVC, PP and PE etc.

- Length of these brushes available up to 2000mm

- Density of bristle is optional as low, medium and high

- Brush board available with or without universal wheels

- Bristle diameter from 0.1mm to 0.5mm or custom made

- Thickness of the base available up to 30mm, except wood

- Bristle type: synthetic bristles, animal Hair, plant fibers, wire etc.

- The width, Length and thickness of the base core can be customized as requested

- Conventional applications: Supporting, conveying, carrying, gliding and noise reduction etc.

- There are no barriers to size and shape, contour forms or cut out areas if required

- Special fixing devices such as round drill holes or slots can make

- Simple conversion of assembly workstation

- Partial replacement possible
